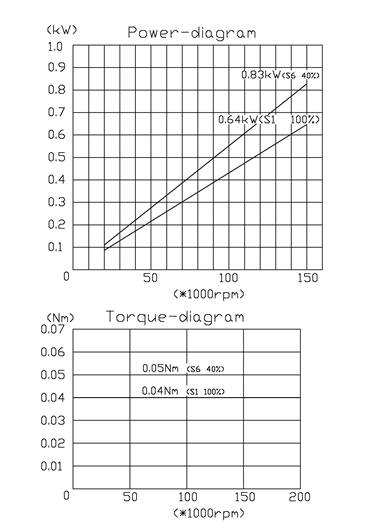

THGZ-80.03 (0.64kW) 夹头 3~3.175mm 电动磨削主轴
规格说明
THGZ-80.03 (Asynchronous built-in motors)
High Frequency Spindles for
Electrohusillos de cambio herramienta manual
HOCH FREQUENZ SPINDELN FÜR MANUELLEN WERKZEUGWECHSEL
Spindle Ø
Diámetro exterior Ø
Spindelhülse-Ø
80mm
Maximum Speed
Velocidad(máximo)
lubricación aire/aceite
Drehzahl(max.)
Öl-Luft-Schmierung
150,000RPM
Tool Interface
Interfaz de herramienta
Werkzeugaufnahme
Collet 3~3.175mm
Voltage
Voltaje
Umrichternennspannung
3Φ230V
Frequency max.
Frequenza(máximo)
Frequenz max.
2,500Hz
at speed
Velocidad Nominal
bei Drehzahl
147,000RPM
kW (S1)
Potencia kW (S1)
Leistung kW (S1)
0.64kW (S1)
Torque Nm(S1)
Par Nm(S1)
Drehmoment Nm(S1)
0.04Nm (S1)
kW (S6-40%)
Potencia kW (S6-40%)
Leistung kW (S6-40%)
0.83kW (S6-40%)
Torque Nm(S6-40%)
Par Nm(S6-40%)
Drehmoment Nm
(S6-40%)
0.05Nm (S6-40%)
Download
Descargar
Herunterladen←
Application
Aplicación
Anwendung
Type
THG-80.02
THGZ-80.03
THG-100.01(380V)
THG-100.02
THG-120.02(400V)
100mm
120mm
Grease
Max. 60,000rpm
Max. 30,000rpm
Oil-Air
Max. 105,000rpm
Max. 120,000rpm
Max. 50,000rpm
Max. 75,000rpm
1kW
0.64kW
6.4kW
1.5kW
4.6kW
1.3kW
0.75kW
8.3kW
1.95kW
6kW
kW (Peak Power)
2.65kW
15kW
4.1kW
14kW
0.08Nm
0.04Nm
1.7Nm
0.16Nm
4.5Nm
0.1Nm
0.05Nm
2.2Nm
0.21Nm
5.9Nm
D6/12
Collet
D14/23
D8/14
D22/38
Spindle Cooling
Oil cooling / Water cooling
Spindle Length
186.2mm
175mm
317.5mm
210.5mm
388.5mm
Spindle Weight
4.5kg
4.1kg
15kg
12kg
25kg
Closed-Loop
N/A
Option
Coolant Through Spindle(CTS)
Grease Lubricated
Housing flange
THG-120.01(400V)
THG-120.14
THG-120.17(400V)
THG-120.20(380V)
THG-120.21
Max. 45,000rpm
Max. 36,000rpm
10kW
13kW
16.9kW
12.5kW
25kW
30.6kW
5.4Nm
3.5Nm
3.2Nm
7.1Nm
4.0Nm
D28/43
D16/28
346mm
